Product Details:
|
| Pixel Pitch:: | 2.064mm | Brand Name:: | TENBULL |
|---|---|---|---|
| Module Size:: | 250MM*250MM | CPU: | Pentium 4 |
| Color:: | 1RGB，colorful | LED Lamp:: | 1921,2020,2121 |
| Lifetime:: | 100000 Hours | Display Mode: | 800*600/1024*768 |
| High Light: | Stability Naked Eye 3D LED Display,Naked Eye 3D LED Display P1.875,Display Full Color 1RGB |
||
TENBULL P4.81 P3.91 P2.064 P1.875 led display full color 3D pixel pitch 3.91mm 4.81mm
Quick detail
1.Power Supply:5V/60A
2.Pixel Density:43264dot/m2
3.Opration Humidity:10%-95%
4.Cabinet: 500*500/500*1000mm
5.Thickness:85MM
Product detail
1. Using high-quality LED chip, low brightness attenuation, good wavelength stability, large angle, good flatness, strong antistatic.
2.Compatible with asynchrony, it can support synchronous control and asynchronous control at the same time; When the control computer fails, it can still display playback normally.
3.It can achieve seamless splicing, uniform picture, true and natural color, high refresh and high gray level.
4.This LED display screen has a wide viewing angle, with large viewing angles both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height drop.
5.The high-performance die-cast aluminum box has the advantages of light weight, low failure rate, easy maintenance and convenient operation..
6.The use of conformal paint better protects the circuit board and its related equipment from the erosion of the environment; It has good high and low temperature resistance; After curing, it becomes a transparent protective film, which has superior insulation, moisture-proof, leakage-proof, shockproof, dust-proof, anti-corrosion, anti-aging, corona resistance and other properties, and better protects the circuit board.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

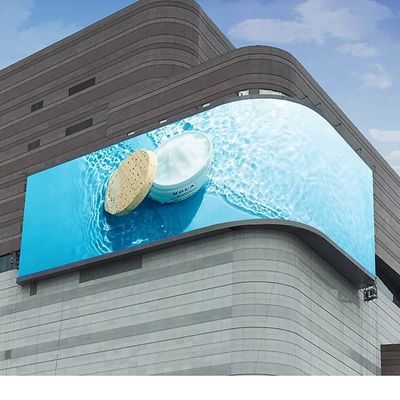

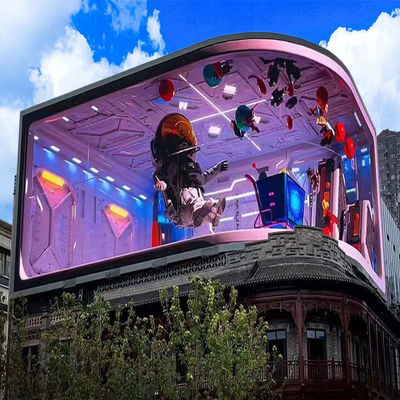

Product photo
FAQ
Q1.How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q2.What about the warranty?
A.Yes, we offer 1 years warranty to our products
Q3.Can I have a sample order for the LED display?
A:Yes, we welcome sample orders to test and check quality. Both for the module or the whole screen.
