Product Details:
|
| Brand: | TENBULL | Model Number: | P4.81 |
|---|---|---|---|
| Pixels: | 4.81mm | Module Size: | 250mm*250mm |
| Led Chip: | SMD 2121 | Refresh Rate: | 1920/3840 |
| Display Function: | Video,picture,Outdoor | Cabinet Size: | 500mm*1000mm |
| High Light: | SMD2121 Stage LED Display Screen,Stage LED Display Screen P4.81,Indoor Full Color Led Display P3.91 |
||
HD screen TENBULL P4.81 P3.91 P2.064 indoor full color led display screen SMD2121
Quick detail
1.Pixel pitch:4.81mm
2.Pixel density:43264dot/m2
3.LED type:SMD1921
4.Pixel configuration:1R1G1B
Product detail

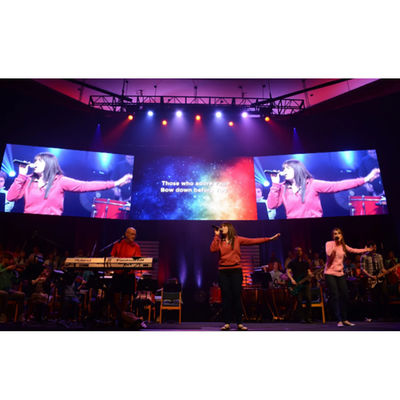

1.This product is applicable to indoor media, performance display screen, exhibition, advertising signs, hotels, stations, airports and other areas.
2.It has the characteristics of leakage-proof, anti-corrosion, waterproof and moisture-proof, earthquake-proof, anti-aging, and high temperature resistance.
3.The box of this LED display is a die-cast aluminum box, which is anti-corrosion, waterproof and moisture-proof, anti-aging, fast heat dissipation, and can effectively extend the life of the display.
4.The modules are all coated with three-proof paint to protect the circuit board and related equipment from environmental influences, and have the characteristics of insulation, moisture-proof, leakage-proof, shock-proof, corrosion-proof, aging-proof, corona-proof, high-temperature resistance, etc.
5.Low brightness and high gray, high-definition display: low brightness and high gray, uniform display gray, good display consistency, high contrast, non-reflective surface and high-definition display.
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ work:-20℃～+50℃ |
|
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
|
power
|
Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
|
Control syste
|
CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
Product photo
FAQ
Q1.What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.What is the payment method?
A:As for the payment method, we generally adopt T/T delivery, or we can make different plans according to different situations.
