Product Details:
|
Brand Name: | TENBULL | Model: | P4.81 |
---|---|---|---|
Warranty: | 1.5 Year | Pixels Pitch: | 4.81mm |
Cabinet Size: | 500mm*500mm/500*1000mm | Led Chip: | SMD 2121 |
Refresh Rate: | 1920/3840 | Module Weight: | 1.2kg |
Usage: | Outdoor,indoor&semi-outdoor | Display Function: | Video,picture,text |
High Light: | Lightweight LED Stage Curtain,LED Stage Curtain SMD 2121,LED Stage Screen Rental 1R1G1B |
Rental LED display screen TENBULL P4.81 P3.91 P2.064 HD full color led stage curtain screen
Quick detail
1.Pixel pitch:4.81mm
2.Color:full color 1R1G1B
3.Module weight 1.2kg
4.Best viewing distance:4m~50m
Product detail
1.It can display pictures in high definition, with high contrast, good display consistency,low brightness and high gray performance.
2.This product is designed to be thin and lightweight, making it easy to transport and install.
3.The box is made of aluminum-magnesium-zinc alloy customized die-cast aluminum box, which is not easy to deform and anti-corrosion. Fast heat dissipation.
4.It has the characteristics of insulation, moisture-proof, anti leakage, shockproof, anti-corrosion, anti-aging, corona resistance, high temperature resistance, etc.
5.The cabinet adopts die cast aluminum box made of aluminum magnesium zinc alloy, which is not easy to deform, resistant to corrosion, has fast heat dissipation, and extends the service life of the product. The design is light and thin, which is convenient for transportation and installation.
P4.81 PARAMETER
MODULE | Iterm | parameter |
Product model | P4.81-13S | |
Module size | 250mm*250mm | |
Pixel pitch | 4.81mm | |
Pixel density | 43264dot/m2 | |
Pixel configuration | 1R1G1B | |
LED type | SMD1921 | |
IC | FM6353 | |
Pixel resolution | 52dots(W)*52dots(H) | |
Max Power consumpion | 60W | |
Module weight | 1.2kg | |
Drive type | Constant drive | |
Scan mode | 1/13 scan | |
LED cabinet | cabinet size | 500mm*1000mm |
Module quantity | 8pcs | |
Power supply | 5V/60A | |
Pixel per cabinet | 104*208 | |
Brightness of white balance | ≥5000cd/m2 | |
Best viewing distance | 4M~50M | |
The best perspective | 160°(W) 120°(H) | |
Temperature | storage:-35℃~+85℃ work:-20℃~+50℃ | |
Opration humidity | 10%-95% | |
Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
Average Power | 400W/S | |
Max.Power consumption | ≤800W/S | |
Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
Operation system | WIN98/2000/NT/XP | |
Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
Refresh frequency | ≥3840HZ | |
Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
MTBF | ≥9000hours | |
Power switch | Automatic switch | |
Display Mode | 800*600/1024*768 |

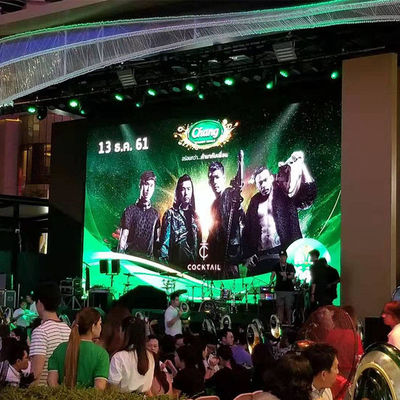

Product photo
FAQ
Q1.What pixel pitch should I choose on my display?
A:It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
