Product Details:
|
| Pixel Pitch:: | 3.91mm/2.064mm/1.857mm | Brand:: | TENBULL |
|---|---|---|---|
| CPU:: | Pentium4 Or Above | Color:: | 1Red 1Green 1Blue/full Color |
| LED Lamp:: | SMD2121/SMD2020/SMD1921 | Lifetime:: | 100000hours |
| Power Switch:: | Automatic Switch | ||
| High Light: | SMD2121 Naked Eye 3D LED Display,Naked Eye 3D LED Display Dustproof,Outdoor 3D LED Display P1.875 |
||
TENBULL P4.81 P3.91 P2.064 P1.875 outdoor custom shape led screen SMD1921 2121 3D led screen
Quick detail
1.Color: 1Red 1Green 1Blue/ colorful
2.Pixel pitch:3.91mm/2.064mm/1.875mm
3.Cabinet: 500mm*1000mm
4.MTBF: ≥9000Hours
5.Power switch: Automatic switch
Product detail
1. High-quality LED wafers are selected, with wide angle, good flatness, strong antistatic, low brightness stability attenuation and high wavelength stability.
2.Use high-quality LED display dedicated IC chip design, with good quality.
3.It has the characteristics of anti-static, dust-proof and good heat dissipation, and can work in any climate.
4.The box design uses a unified standard, so that the same box size can be adapted to the requirements of different pixel display, the installation is more convenient, the box is thinner and better, and the transportation cost is saved.
5.The locking structure makes splicing easy and tool-free.
6.It has real-time error detection, that is, it can independently detect whether each LED is open without adding additional external components, and can eliminate problems such as crosses.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

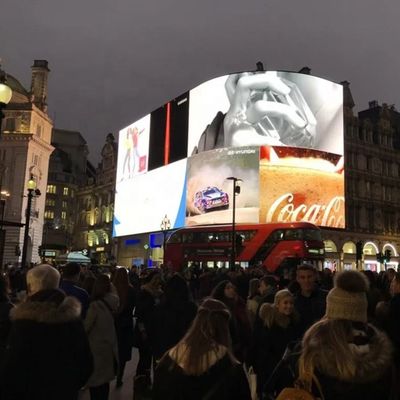

Product photo
FAQ
Q1.How long is the warranty?
A:The standard warranty is 1 year. It could be longer upon request.
Q2.Can I have sample firstly?
A:Yes, we can send one unit panel as sample for your check and test before order.
Q3.When will you make the delivery?
A:We can make the delivery within 10-12 working days for the led modules and 15-18 days for the led finished screen according to the size and quantities of your order.
