Product Details:
|
| Pixel Pitch:: | 2.064MM | Brand:: | TENBULL. |
|---|---|---|---|
| CPU:: | Pentium Four. | Color:: | Fullcolor/red Green Blue |
| LED Lamp:: | SMD1921/2020 | Lifetime:: | 100000 H |
| Cabinet Size: | 500*1000MM/500*500MM | ||
| High Light: | 1R1G1B LED 3D Screen,LED 3D Screen P2.064,3D LED Display ROHS |
||
3D LED screen TENBULL P4.81 P3.91 P2.064 P1.875 full color 1R1G1B professional 3D led display
Quick detail
1.Color:red green blue/Colorful
2.Pixel pitch:2.064
3.Module: 250*250MM
4.Cabinet: 500*1000mm/500*500mm
5.MTBF: ≥9000hours
Product detail
1. Using high-quality LED chip, low brightness attenuation, good wavelength stability, large angle, good flatness, strong antistatic.
2.Unlimited formats, which can be arbitrarily arranged according to user needs; It can display text, charts, images, animations, and video information required by users
3.It has the characteristics of anti-static, dust-proof and good heat dissipation, and can work in any climate.
4.This LED display screen has good flatness, soft touch, consistent ink color of the mask, and high contrast of the entire display screen.
5.High-quality material selection: using imported light-emitting materials, high-quality LED display special IC chip design, with small package, high brightness, large angle, antistatic and other characteristics; It adopts the fanless design of the whole screen, with low power consumption and no noise.
6.Its performance is stable. The unique treatment of the anti electromagnetic wave of the display screen is an important reason why the display screen has been stable compared with other displays. The use of distributed scanning technology and modular design technology makes the display screen more reliable and stable.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

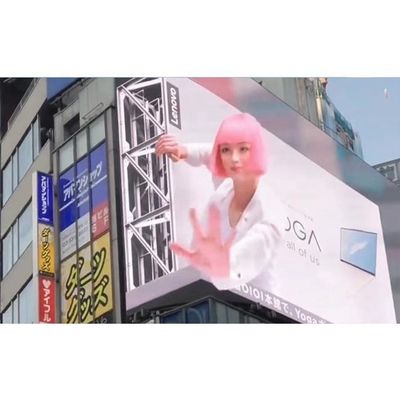

Product photo
FAQ
Q1.What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2.What kind of display do we provide?
A:We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
Q3.When will you make the delivery?
A:We can make the delivery within 10-12 working days for the led modules and 15-18 days for the led finished screen according to the size and quantities of your order.
