Product Details:
|
| Pixel Pitch:: | 2.064MM | Brand Name:: | TENBULL |
|---|---|---|---|
| CPU: | Pentium Four. | Color:: | 1RGB， Colorful |
| LED Lamp:: | SMD1921/2020/2121 | Lifetime:: | 100000 Hour |
| Cabinet Size: | 500*500MM 500*1000mm | ||
| High Light: | 1R1G1B Naked Eye 3D LED Display,Naked Eye 3D LED Display SMD2020,LED Display For Advertising P1.875 |
||
TENBULL P4.81 P3.91 P2.064 P1.875 1R1G1B colorful led screen commercial advertising led display
Quick detail
1.Color:RGB/Colorful
2.Pixel pitch:2.064MM
3.Module: 250*250MM
4.Cabinet: 500*500/500*1000MM
5.Thickness:85MM
Product detail
1. Using high-quality LED chip, low brightness attenuation, good wavelength stability, large angle, good flatness, strong antistatic.
2.Each LED has a consistent height and a large visual angle both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height drop.
3.It has the characteristics of anti-static, dust-proof and good heat dissipation, and can work in any climate.
4.For high shutter photography, this product can achieve no flicker, no color block, and efficient live broadcast.
5.Using the computer to send the edited content to the system control card, the edited content can be displayed, and the operation is simple
6.It uses high-quality luminous components as the core material of the display screen, which fundamentally ensures the service life of the product.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

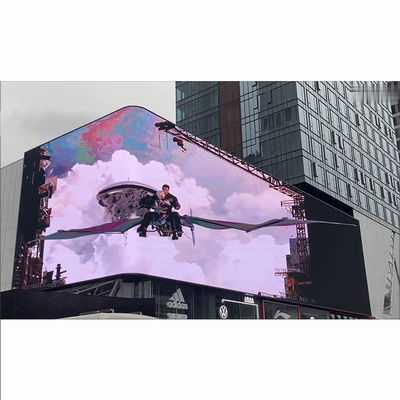

Product photo
FAQ
Q1.What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2.What about the warranty?
A:One year warranty.
Q3.When will you make the delivery?
A:We can make the delivery within 10-12 working days for the led modules and 15-18 days for the led finished screen according to the size and quantities of your order.
