Product Details:
|
| Brand: | TENBULL | Type: | Tiles |
|---|---|---|---|
| Certification: | CE,RoHS,FCC | Module Size: | 250*250MM |
| Color: | 1RGB Colorful | Product Name: | Floor Tiled Display Screen |
| Application: | Club Disco Dj Bar Stage Lighting,dance Floor,Swimming Pool Tile,T Shage | Cabinet Size: | 500*500mm/500*1000mm |
| High Light: | P3.91 LED Floor Tile,LED Floor Tile 1RGB,LED Full Color Display RoHS |
||
outdoor indoor P3.91 P4.81 led floor tiled display screen full color waterproof led display
Quick detail
1.Pixel pitch:4.81mm
2.Color:full color 1R1G1B
3.Pixel density:43264dot/m2
4.Best viewing distance:4m～50m
5.Pixel configuration:1R1G1B full color
Product detail
1.It can display pictures in high definition, with high contrast, good display consistency,low brightness and high gray performance.
2.It can be seamlessly spliced to solve the visual defects caused by the segmentation of the spliced large screen images. The lock catch structure makes the splicing operation simple and convenient.
3.The box adopts die cast aluminum box made of aluminum magnesium zinc alloy, which is not easy to deform, resistant to corrosion, has fast heat dissipation, and extends the service life of the product. The design is light and thin, which is convenient for transportation and installation.
4.Application scenario: indoor media, performance display screen, new product release, exhibition, sign, information display, hotel, station, airport, etc.
5.Adopt automatic glue machine to glue the module, so as to ensure uniform, smooth and waterproof glue filling of the module.
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

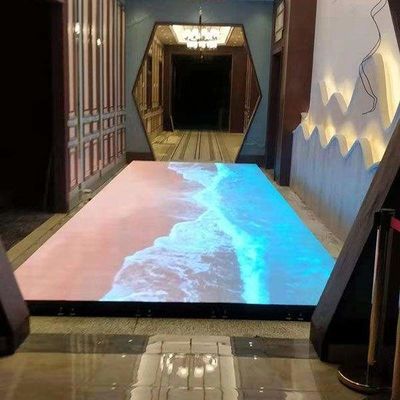

Product photo
FAQ
Q1.How do you ship the goods and how long does it take to arrive?
A:We mostly accept FOB terms, but we can help you order and arrange a shipping agent. It usually takes 20-30 days on the sea and a few days for customs clearance.
Q2.How does your factory do regarding quality control?
A:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q3.When will you make the delivery?
A:We can make the delivery within 10-12 working days for the led modules and 15-18 days for the led finished screen according to the size and quantities of your order.
