1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display

1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display
1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display 1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display 1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display

Large Image :  1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display

Product Details:
Place of Origin: Guangxi,China
Brand Name: TENBULL
Certification: CE/ROHS/ISO/CB
Model Number: 4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: flight case or wooden case
Delivery Time: 15
Payment Terms: T/T
Supply Ability: 10000 piece/month

1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display

Description
Brand Name: TENBULL Pixel Pitch: 4.81mm
Warranty: 1.5 Year Pixel Configuration: Full Color 1RGB
Place Of Origin: China Application: Stage,floor Display Screen, Advertising
Module Size: 250mm*250mm Model: P4.81
Supplier: Original Factory
High Light:

1RGB Interactive LED Floor Panels

,

Interactive LED Floor Panels P3.91

,

Light LED Display P4.81

HD LED display TENBULL P4.81 P3.91 P2.064 interactive led floor panels SMD 2121




Quick detail





1.LED type:SMD1921



2.Pixels pitch:4.81mm



3.Module weight 1.2kg



4.Pixel configuration:1R1G1B colorfull



5.Opration humidity:10%-95%









Product detail





1.The design of this display screen is novel and generous, with low energy consumption, light weight and convenient loading and unloading.



2.It has an anti-collision design. A 4mm anti-collision lamp step is installed at the bottom of the box. Even if the box is tilted forward, it can also protect the lamp beads during handling.



3.The back cover of the box body is designed in a buckle way, which can be quickly installed and disassembled, and the front and rear maintenance design is adopted, so as to quickly maintain, save worry, labor and time.



4.Reasonable structure, high precision, thin and light.



5.60-degree omni-directional view, with a huge viewing area, to adapt to various rental environments.



6.This product is a high-performance die-casting aluminum box, characterized by light weight, and easy maintenance and operation.


P4.81 PARAMETER



MODULE Iterm parameter
  Product model P4.81-13S
  Module size 250mm*250mm
  Pixel pitch 4.81mm
  Pixel density 43264dot/m2
  Pixel configuration 1R1G1B
  LED type SMD1921
  IC FM6353
  Pixel resolution 52dots(W)*52dots(H)
  Max Power consumpion 60W
  Module weight 1.2kg
  Drive type Constant drive
  Scan mode 1/13 scan
LED cabinet cabinet size 500mm*1000mm
  Module quantity 8pcs
  Power supply 5V/60A
  Pixel per cabinet 104*208
  Brightness of white balance ≥5000cd/m2
  Best viewing distance 4M~50M
  The best perspective 160°(W) 120°(H)
  Temperature

storage:-35℃~+85℃

work:-20℃~+50℃

  Opration humidity 10%-95%
  Thickness 85mm

power



Working voltage AC220V±10%
  Average Power 400W/S
  Max.Power consumption ≤800W/S
  Current ≤20mA(single LED)

Control syste



CPU Pentium4 or above
  Operation system WIN98/2000/NT/XP
  Control method Synchronization

Main technical

parameter

Driving device Constant currentdriver IC
  Refresh frequency ≥3840HZ
  Grey scale/colors 256levels of each color(RGB)/16.7M colors
  MTBF ≥9000hours
  Power switch Automatic switch
  Display Mode 800*600/1024*768

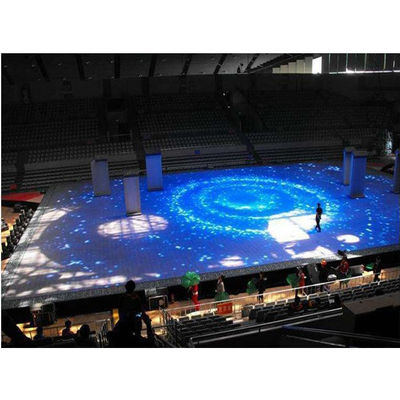

Product photo
1RGB Interactive LED Floor Panels P4.81 P3.91 Light LED Display 0
FAQ





Q1.Do you have other LED display series?

A:Yes. We manufacture many series,including indoor/outdoor/rental/trailer/taxi/bus led display.



Q2.Can I order a sample?

A:Yes,We welcome customers to order samples to check our product quality of our products and service.



Q3.Where is it used for?

A:Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
