Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064

Certification
China Beihai Tenbull Optoelectronics Technology Co., Ltd. certification
China Beihai Tenbull Optoelectronics Technology Co., Ltd. certification
I'm Online Chat Now

Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064

Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064
Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064 Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064 Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064 Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064 Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064

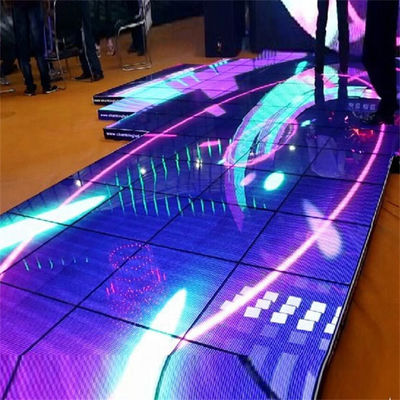

Large Image :  Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064

Product Details:
Place of Origin: Guangxi,China
Brand Name: TENBULL
Certification: CE/ROHS/FCC/ISO/CB
Model Number: 4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: flight case or wooden case
Delivery Time: 15
Payment Terms: T/T
Supply Ability: 10000 piece/month

Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064

Description
Brand Name: TENBULL Pixel Pitch: 4.81mm
Warranty: 1.5 Year Pixel Configuration: 1R1G1B
Place Of Origin: China Application: Stage,advertising
Module Size: 250mm*250mm Box Size: 500mm*500mm
Lifetime: 100000hours
High Light:

P2.064 LED Screen Floor Tiles

,

LED Screen Floor Tiles 1R1G1B

,

Commercial Interactive LED Floor Tiles

commercial LED display screen TENBULL P4.81 P3.91 P2.064 interactive led floor tiles




Quick detail





1.Pixel pitch:4.81mm



2.Pixel configuration:1R1G1B



3.Module size:250*250mm



4.Box size:500*500mm



5.Best viewing distance:4m~50m









Product detail





1.The controllability of the whole process from materials to finished products and from R&D to production has become the guarantee of product quality reliability.



2.The unit size is almost the same, which is convenient for assembly. After assembly, the gap is even, the screen is flat, the effect is good, and the quality is good.



3.This display screen has various forms, which can be made into square, rectangular, arc, circular and other shapes.



4.This display box is a high-performance die-casting aluminum box, characterized by light weight, low failure rate and easy maintenance and operation.



5.It can be seamlessly spliced, with true and natural colors, uniform images, high refresh rate and high grayscale.



6.Seamlessly splicing, easy maintenance: the locking structure makes splicing operation simple and convenient without tools.



7.Applications: indoor media, performance display screen, new product release, exhibition, signs, information display, hotels, stations, airports, etc.


P4.81 PARAMETER



MODULEItermparameter
 Product modelP4.81-13S
 Module size250mm*250mm
 Pixel pitch4.81mm
 Pixel density43264dot/m2
 Pixel configuration1R1G1B
 LED typeSMD1921
 ICFM6353
 Pixel resolution52dots(W)*52dots(H)
 Max Power consumpion60W
 Module weight1.2kg
 Drive typeConstant drive
 Scan mode1/13 scan
LED cabinetcabinet size500mm*1000mm
 Module quantity8pcs
 Power supply5V/60A
 Pixel per cabinet104*208
 Brightness of white balance≥5000cd/m2
 Best viewing distance4M~50M
 The best perspective160°(W) 120°(H)
 Temperature

storage:-35℃~+85℃

work:-20℃~+50℃

 Opration humidity10%-95%
 Thickness85mm

power



Working voltageAC220V±10%
 Average Power400W/S
 Max.Power consumption≤800W/S
 Current≤20mA(single LED)

Control syste



CPUPentium4 or above
 Operation systemWIN98/2000/NT/XP
 Control methodSynchronization

Main technical

parameter

Driving deviceConstant currentdriver IC
 Refresh frequency≥3840HZ
 Grey scale/colors256levels of each color(RGB)/16.7M colors
 MTBF≥9000hours
 Power switchAutomatic switch
 Display Mode800*600/1024*768


Commercial Interactive LED Screen Floor Tiles 1R1G1B P4.81 P2.064 0
FAQ





Q1.How to proceed an order for the led display?

A:Firstly let us know your requirements or application;Secondly We quote according to your requirements or our suggestions;Thirdly customer confirms the samples and places order and do payment here by trade assurance;Fourthly We arrange the production.



Q2.How to deal with the faulty?

A:Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%; Secondly, during the guarantee period, we will send a new module with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.



Q3.How to install it after we receive it?

A:We will offer instructions to guide you on installation, and also software setting up photos or steel construction drawings.
