Product Details:
|
Brand Name: | TENBULL | Warranty: | One Year |
---|---|---|---|
Model: | P1.875 / P2.064 | Weight: | 315g |
Brightness: | Manual/automatic | Input Power Frequency:: | 50HZ |
Pixel Configuration:: | 1R1G1B | Input Power Frequency: | 50hz |
High Light: | SMD 2121 Mirror Display Screen,Mirror Display Screen P2.064,P1.875 Mirror LED Display |

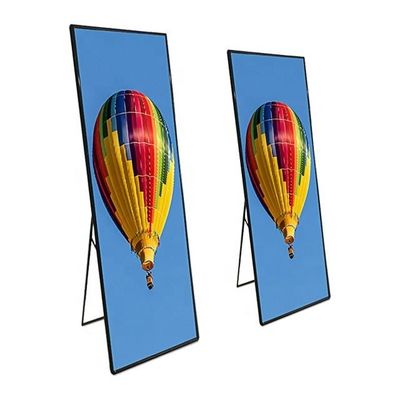

TENBULL P2.064 P1.875 led display SMD 2121 full color mirror display screen
Quick detail
1.Pxel Pitch:1.875 2.064
2.Cell Box Resolution:160*90 Dots
3.Pixel Configuration:1R1G1B
4.Best Vewing Distance:1.9~15m
Product detail
1.The viewing angle is excellent: it has a large viewing angle both horizontally and vertically
2.It has the functions of one key touch screen technology, three steps of startup, automatic identification, and instant use.
3.Easy to install, easy to install and remove quickly, easy to maintain, different sizes of boxes can be mixed and matched.
4.Three-proof paint is applied to protect circuit boards and related equipment from environmental erosion; Excellent insulation, moisture-proof, leakage-proof, shockproof, dustproof, corrosion-proof and aging-proof properties.
5.This product adopts in-line adapter board design, simplifying the wiring in the box, effectively reducing the problem of poor connection, and reducing signal attenuation and interference, and high-quality light-emitting devices ensure high reliability and high life.
Parameter
Module Parameter | |
Parameter | Value |
Pixel Pitch | 1.875mm |
Pixel configuration | 1R1G1B |
LED type | 1515 SMD 3-in-1 |
Brightness | 500-600 nits |
Color temperature | 7500±500K |
Viewing angle | H: 110°; V:110° |
Unit box size | 300*168.75mm |
Cell box resolution | 160*90 Dots |
Cell box pixel density | 14400pixels |
Driving Method | Constant flow drive,1/45 scan |
Processing depth | 14 bits |
Gray scale | 16384 levels per color |
Color | 281.4 trillion |
Brightness control | Manual/Automatic |
Maximum contrast | 3000:1 |
Video frame rate | 50/60 Hz |
Rate refresh | 2800~3840 Hz |
Input voltage | 220VAC |
Input power frequency | 50Hz |
Input power <max> | ≤450W/m2(22.5W/cabinet) |
Input power <typical> | ≤135W/m2(7W/cabinet) |
Life Time | ≥100,000 Hours |
Maintenance mode | Modulpower card front maintenance |
Recommended viewing distance | 1.9M-15M |
Weight | 315g |
Diagonal | 13.5〞 |
Aspect ratio | 16:9 |
Material | Die-casting Aluminum |
Ingress protection | IP20 |
Operating Temperature/Humidity | 0℃~+45℃/10~90%RH |
Storage Temperature/Humidity | -10℃~+55℃/10~90%RH |
Rigging form | Fixed with support bracket |
Input signal | SDI,RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Data interconnection | ( L≤100m );( single mode fiber ) ( L≤20km ) |
Product certification | CCC |
