Product Details:
|
Brand Name: | TENBULL. | Warranty: | 1.5 Years |
---|---|---|---|
Model: | P1.875, P2.064 And Others | Pixel Pitch: | 1.875mm 2.064mm |
Cell Box Pixel Density: | 14400pixels | Gray Scale: | 16384 Levels Per Color |
Brightness Control: | Manual/Automatic. | ||
High Light: | 1R1G1B Mirror LED Screen,Mirror LED Screen ROHS,LED Screen Brightness P1.875 |

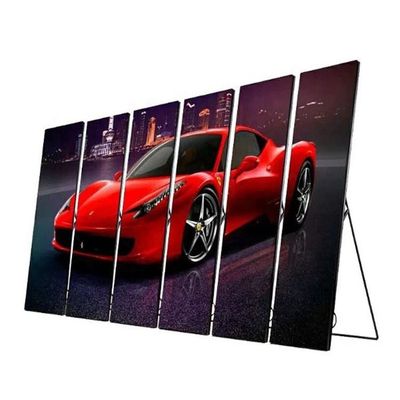

TENBULL P2.064 P1.875 led display full color mirror screen module size 250*250mm
Quick detail
1.Pixel pitch:1.875mm 2.064mm and others
2.Color Temperature:7500±500k
3.Brightness:500-600 NITS
4.Best Viewing Distance:1.9~15M
5.Gray Scale:16384 levels per color
Product detail
1.The display screen has a long service life, and the core material is high-quality luminous components.
2.This product is designed to be thin and lightweight, making it easy to transport and install.
3.Convenient operation: the edited content of computer is sent to the system control card, and the edited content can be displayed. The system operation is very convenient.
4.The product mask has consistent ink color, high contrast and good flatness of the entire display screen.
5.Seamless splicing, small splicing error, easy to install, can be made into any shape according to the needs of users.
6.This product has a unique treatment of the anti electromagnetic wave of the display screen, and uses distributed scanning technology and modular design technology to make the display screen more reliable and stable.
Parameter
Module Parameter | |
Parameter | Value |
Pixel Pitch | 1.875mm |
Pixel configuration | 1R1G1B |
LED type | 1515 SMD 3-in-1 |
Brightness | 500-600 nits |
Color temperature | 7500±500K |
Viewing angle | H: 110°; V:110° |
Unit box size | 300*168.75mm |
Cell box resolution | 160*90 Dots |
Cell box pixel density | 14400pixels |
Driving Method | Constant flow drive,1/45 scan |
Processing depth | 14 bits |
Gray scale | 16384 levels per color |
Color | 281.4 trillion |
Brightness control | Manual/Automatic |
Maximum contrast | 3000:1 |
Video frame rate | 50/60 Hz |
Rate refresh | 2800~3840 Hz |
Input voltage | 220VAC |
Input power frequency | 50Hz |
Input power <max> | ≤450W/m2(22.5W/cabinet) |
Input power <typical> | ≤135W/m2(7W/cabinet) |
Life Time | ≥100,000 Hours |
Maintenance mode | Modulpower card front maintenance |
Recommended viewing distance | 1.9M-15M |
Weight | 315g |
Diagonal | 13.5〞 |
Aspect ratio | 16:9 |
Material | Die-casting Aluminum |
Ingress protection | IP20 |
Operating Temperature/Humidity | 0℃~+45℃/10~90%RH |
Storage Temperature/Humidity | -10℃~+55℃/10~90%RH |
Rigging form | Fixed with support bracket |
Input signal | SDI,RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Data interconnection | ( L≤100m );( single mode fiber ) ( L≤20km ) |
Product certification | CCC |
