Product Details:
|
| Brand Name: | TENBULL | Model: | P1.875 |
|---|---|---|---|
| Pixel Pitch: | 1.87 | Cell Box Pixel Density: | 14400pixels |
| Rate Refresh: | 2800~3840 Hz | Aspect Ratio: | 16:9 |
| High Light: | SMD1921 Video Signage Displays,Video Signage Displays P2.064,LED Screen Signage P1.875 |
||

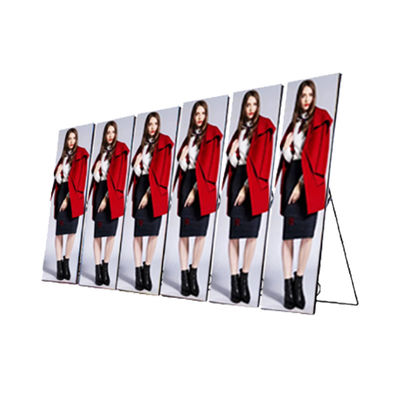

TENBULL P2.064 P1.875 indoor SMD1921 led screen colorful video signage displays
Quick detail
1.Pixel pitch:1.875mm
2.Color:full color 1R1G1B
3.Brightness:500-600 nits
4.Best viewing distance:1.9M-15M
Product detail
1.This display screen has the characteristics of strong luminous brightness. When the sun shines directly on the screen surface, the display content is still clearly visible.
2.This product is suitable for advertising information such as promotional text, graphics and multimedia programs.
3.This LED box is a die-cast aluminum box customized from aluminum-magnesium-zinc alloy, which can effectively extend the life of the product.
4.This LED display screen has good flatness, consistent ink color of the mask, high contrast of the entire display screen, and soft and smooth feel.
Parameter
| Module Parameter | |
| Parameter | Value |
| Pixel Pitch | 1.875mm |
| Pixel configuration | 1R1G1B |
| LED type | 1515 SMD 3-in-1 |
| Brightness | 500-600 nits |
| Color temperature | 7500±500K |
| Viewing angle | H: 110°; V:110° |
| Unit box size | 300*168.75mm |
| Cell box resolution | 160*90 Dots |
| Cell box pixel density | 14400pixels |
| Driving Method | Constant flow drive,1/45 scan |
| Processing depth | 14 bits |
| Gray scale | 16384 levels per color |
| Color | 281.4 trillion |
| Brightness control | Manual/Automatic |
| Maximum contrast | 3000:1 |
| Video frame rate | 50/60 Hz |
| Rate refresh | 2800~3840 Hz |
| Input voltage | 220VAC |
| Input power frequency | 50Hz |
| Input power <max> | ≤450W/m2(22.5W/cabinet) |
| Input power <typical> | ≤135W/m2(7W/cabinet) |
| Life Time | ≥100,000 Hours |
| Maintenance mode | Modulpower card front maintenance |
| Recommended viewing distance | 1.9M-15M |
| Weight | 315g |
| Diagonal | 13.5〞 |
| Aspect ratio | 16:9 |
| Material | Die-casting Aluminum |
| Ingress protection | IP20 |
| Operating Temperature/Humidity | 0℃~+45℃/10~90%RH |
| Storage Temperature/Humidity | -10℃~+55℃/10~90%RH |
| Rigging form | Fixed with support bracket |
| Input signal | SDI,RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
| Data interconnection | ( L≤100m )；( single mode fiber ) ( L≤20km ) |
| Product certification | CCC |
