Product Details:
|
| Brand Name: | TENBULL | Wartanty: | 1.5 Years |
|---|---|---|---|
| Module Size: | 250*250mm | Color: | Colorful |
| Pixel Pitch: | 3.91mm | LED Lamp: | 1921 |
| Brightness: | ≥1200CD | Refresh Rate: | 3840Hz |
| Screen Dimension: | Can Be Customized | ||
| High Light: | RGB Outdoor Advertising Screen,Outdoor Advertising Screen P3.91,3.91mm Pixel Pitch LED Screen |
||
TENBULL P4.81 P3.91 P2.064 P1.875 outdoor led advertising screen pixel pitch 3.91mm 4.81mm
product detail
1.IC: SMD2121 or SMD1921
2.Application: commercial stage, commercial LED display screen background
3.Pixel Pitch: 2.604MM 3.91MM 4.81MM
4.Color: RGB
product feature
1.The module is filled with glue by an automatic glue filling machine to ensure that the module is filled with glue evenly, smoothly and waterproof.
2.It has the characteristics of insulation, moisture-proof, anti leakage, shockproof, anti-corrosion, anti-aging, corona resistance, high temperature resistance, etc.
3.Wide viewing angle: the screen can be viewed from a wide range, and the pictures and videos seen from any angle are clear and natural.
4.The lock catch structure makes the splicing operation simple and convenient, which can achieve seamless connection and solve the visual defect of splicing large screen images.
5.The design of this product is thin and light,so it is convenient for the transportation process and the installation process.
6.It is applicable to indoor media, performance display screen, exhibition, advertising signs, hotels, stations, airports, etc.
P3.91 Outdoor Led Screen parameter
| Application: | Outdoor, Advertising |
| Color: | Full Color |
| Panel Size: | 250mm*250mm |
| Pixel Pitch: | 3.91mm |
| Supplier Type: | Original manufacturer |
| Media Available: | datasheet, Photo, EDA/CAD Models, Other |
| Place of Origin: | Guangxi, China |
| Model Number: | LIGHTALL- Outdoor P2.604 P3.97 P4.87 |
| Brand Name: | TENBULL |
| Pixels: | 3.91mm |
| Specification: | Video Wall, LED Display, LED Screen |
| Display Fuction: | Video |
| Screen Dimension: | Customized Size |
| Lifespan: | 100000h |
| Input Voltage: | 100-240V |
| Refresh Rate: | 3840Hz |
| LED Configuration: | SMD1921 |
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Model | P3.91 | |
| LED MOQ | 1pc | |
| LED IC | 1921/2020/2121 | |
| LED Power | 50W | |
| Input Voltage | AC85~265V | |
| Frequency Range | 50Hz – 60Hz | |
| Power Factor | >98 | |
| Power Efficiency | >85% | |
| Luminous Efficiency | 70~110LM/W | |
| Color Temperature | WW | 2700-3500K |
| PW | 4000-5500K | |
| CW | 6000-7000K | |
| CRI | WW | Ra>70 |
| PW | Ra>75 | |
| CW | Ra>75 | |
| Lamp Efficiency | >85% | |
| Lumens Output | WW | 4200lm |
| PW | 4400lm | |
| CW | 4600lm | |
| Beam Angle | 120° | |
| Working Temperature | -40℃ ～ +55℃ | |
| Storage Temperature | -25℃ ～ +65℃(25℃best) | |
| Life span | >100000hrs | |
| Certification | CE, RoHS, FCC | |
| Housing Color | Black | |
| package | 67*36*29cm (4pcs/box) | |

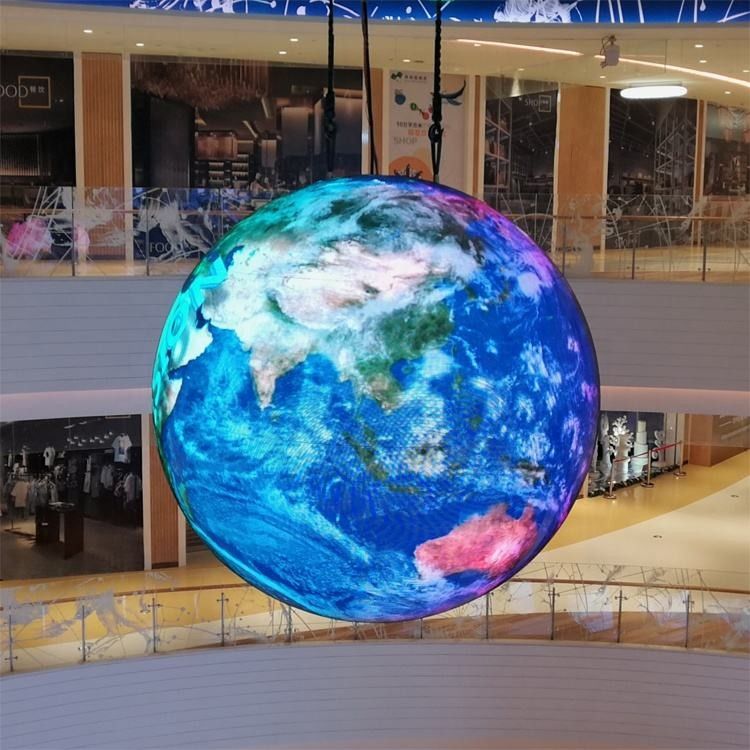

Product photo
FAQ
Q1.What about the warranty?
A:One year warranty.
Q2.What's the pixel pitch for Indoor LED Display Screen?
A:Indoor(P1.667mm/P1.875mm/P2mm/P2.5mm/P2.976mm/P3mm/P3.91mm/P4mm/P4.81mm/P5mm/P6mm / P8mm/P10mm).
Q3.What's the pixel pitch for Outdoor LED Display Screen?
A:Outdoor(P3mm/P3.91mm/P4mm/P4.81mm/P5mm/P6mm / P8mm/P10mm).
