Product Details:
|
| Pixels:: | 4.81mm | Brand Name: | TENBULL |
|---|---|---|---|
| Model Number: | P4.81 | Dimension: | 960MM*960MM*100 MM |
| Module Size: | 250MM*250MM | Warranty: | 1.5Year |
| Usage: | Outdoor | Display Function: | Video,Animation,picture,text |
| Brightness: | 6500cd/sqm | Life Span: | 100000 Hours |
| Module Weight: | 1.2KG | ||
| High Light: | 1R1G1B LED Stadium Display,LED Stadium Display P4.81,P3.91 Display Screen Rental |
||
led display full color stadium TENBULL P4.81 P3.91 P2.064 P1.875 rental waterproof led display screen
Quick detail
1.Pixel pitch:4.81mm
2.LED type:SMD1921
3.Color:full color 1R1G1B
4.Module size:250*250mm
5.Temperature:storage:-35℃～+85℃;work:-20℃～+50℃
Product detail
1.Easy to install, easy to install and remove quickly, and can be mixed and matched between different size boxes.
2.The box design is standardized, better suitable for the requirements of different pixel display, easy to install, the box is thinner and better saves transportation costs.
3.This LED display screen has an ultra-high refresh rate and can capture high-definition and delicate display images.
4.It has the characteristics of insulation, moisture-proof, anti leakage, shockproof, anti-corrosion, anti-aging, corona resistance, high temperature resistance, etc.
5.The same batch of light-emitting devices is selected to use, with high uniformity and good flatness.
6.Use a high-quality blanking solution: completely eliminate ghosting, dark and bright phenomena.
7.It can be spliced seamlessly and quickly, and it is easy to repair and maintain, because the locking structure makes the splicing operation simple and convenient and tool-free.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

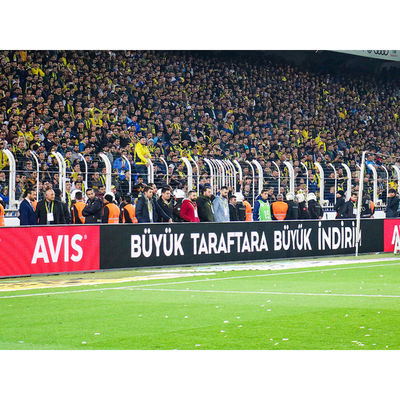

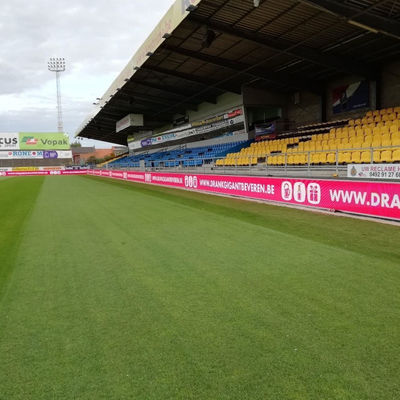

Product photo
FAQ
Q1.What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.What kind of display do we provide?
A:We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
