Product Details:
|
| Pixel Pitch:: | 4.81mm | Brand Name: | TENBULL |
|---|---|---|---|
| Cabinet:: | 500*500mm | Warranty:: | One Year |
| Module:: | 250*250mm | CPU:: | Pentium4 |
| Color:: | Full Color | Lamp:: | 1921 |
| Power:: | 50W | ||
| High Light: | Dustproof Outdoor LED Display Screen,Outdoor LED Display Screen 50W,LED Display Cabinet 500*1000mm |
||
colorful TENBULL P4.81 P3.91 P2.064 advertising led display screen cabinet size 500*1000mm
Quick detail
1.Color: colorful
2.Pixels: 4.81mm
3.Module size: 250mm*250mm
4.Cabinet: 500mm*1000mm
5.Power supply: 5V/60A
Product detail
1. This dustproof LED display simplifies wiring in the enclosure, effectively reducing poor connections and reducing signal degradation and interference.
2.The box design uses a unified standard, so that the same box size can be adapted to the requirements of different pixel display, the installation is more convenient, the box is thinner and better, and the transportation cost is saved.
3.The mask design has better visual effects, non-reflective surface, large viewing angle, good viewing effect, and good display effect.
4.It adopts a locking structure to make the splicing operation simple and convenient, so it can be seamlessly and quickly spliced and easy to repair and maintain.
5.This LED display has an ultra-high refresh rate.
6.Silent design, no air conditioning, no fan installation, eliminate noise, reduce power consumption, save power and energy.
7.This product is suitable for military and public safety, energy, urban management, public information release platform, transportation and transportation, radio and television, cinema, enterprise video conference system, medical, education and other fields of fixed installation occasions.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

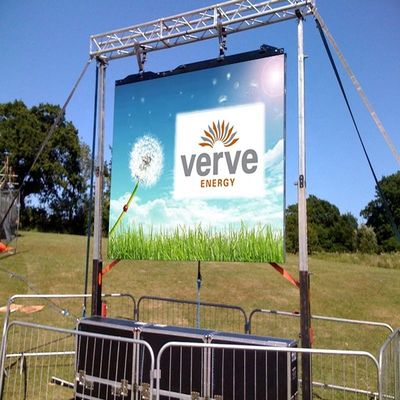

Product photo
FAQ
Q1.How to install it after we receive it?
A:We will offer instructions to guide you on installation, and also software setting up photos or steel construction drawings.
Q2.What about the warranty?
A:One year warranty.
Q3.What is your minimum order size?
A:Your order can be accepted in any quantity. And the price is negotiable.
