P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display

P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display
P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display

Large Image :  P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display

Product Details:
Place of Origin: Guangxi,China
Brand Name: TENBULL
Certification: CE/ROHS/FCC/ISO/CB
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: flight case / wooden case
Delivery Time: 15
Payment Terms: T/T
Supply Ability: 10000 piece/month

P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display

Description
Brand Name: TENBULL Model: P4.81
Warranty: 1year Pixels: 4.81mm
Module Size: 250mm*250mm/500*500mm Led Chip: 2121
Application: Stage Color: Red Green Blue
Module Weight: 1.2kg
High Light:

P3.91 LED Stage Backdrop Screen

,

P2.064 LED Stage Backdrop Screen

,

SMD1921 LED Module Display



TENBULL P4.81 P3.91 P2.064 led stage backdrop screen SMD1921 module size 250*250mm









Quick detail





1.Product model is P4.81



2.The pixel pitch of the product is 4.81mm



3.The module LED display screen size is 250*250,the cabinet size is 500*500mm/500*1000mm



4.Refresh frequency:≥3840HZ









Product feature





1.Its gray scale display is uniform and consistent, with high contrast and non reflective surface.



2.The picture is clear and natural, without flicker, delay or mosaic; and it changes the picture more quickly, and the color display is more symmetrical.



3.The display screen has a wider viewing range, and you can see the picture clearly from any angle.



4.The lock catch structure makes the splicing operation simple and convenient, which can achieve seamless connection and solve the visual defect of splicing large screen images.



5.The module is filled with glue by an automatic glue filling machine to ensure that the module is filled with glue evenly, smoothly.









P4.81 PARAMETER





MODULE

Iterm parameter
  Product model P4.81-13S
  Module size 250mm*250mm
  Pixel pitch 4.81mm
  Pixel density 43264dot/m2
  Pixel configuration 1R1G1B
  LED type SMD1921
  IC FM6353
  Pixel resolution 52dots(W)*52dots(H)
  Max Power consumpion 60W
  Module weight 1.2kg
  Drive type Constant drive
  Scan mode 1/13 scan

LED cabinet



cabinet size 500mm*1000mm
  Module quantity 8pcs
  Power supply 5V/60A
  Pixel per cabinet 104*208
  Brightness of white balance ≥5000cd/m2
  Best viewing distance 4M~50M
  The best perspective 160°(W) 120°(H)
  Temperature

storage:-35℃~+85℃

work:-20℃~+50℃

  Opration humidity 10%-95%
  Thickness 85mm

power



Working voltage AC220V±10%
  Average Power 400W/S
  Max.Power consumption ≤800W/S
  Current ≤20mA(single LED)

Control syste



CPU Pentium4 or above
  Operation system WIN98/2000/NT/XP
  Control method Synchronization

Main technical

parameter

Driving device Constant currentdriver IC
  Refresh frequency ≥3840HZ
  Grey scale/colors 256levels of each color(RGB)/16.7M colors
  MTBF ≥9000hours
  Power switch Automatic switch
  Display Mode 800*600/1024*768

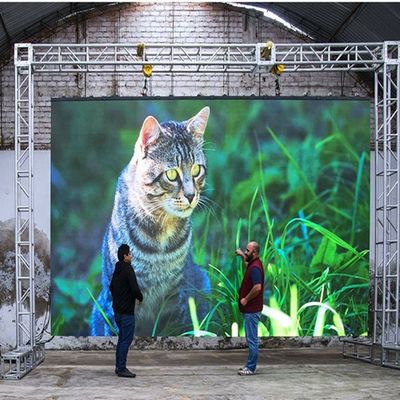

Product photo



P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display 0P4.81 P3.91 P2.064 LED Stage Backdrop Screen SMD1921 LED Module Display 1
