Product Details:
|
Application: | Outdoor Indoor | Panel Size: | 250mm*250mm |
---|---|---|---|
Lifespan: | 100000 H | Screen Dimension:: | Customized Size |
Warranty: | 1.5 Year | LED Configuration:: | SMD1921/2121 |
Tube Chip Color: | 1RGB | Pixels: | 3.91mm,4.81mm |
High Light: | P3.91 Indoor Rental Led Display,Rental Led Display SMD1921,Full Color Led Display 1RGB |
TENBULL P3.91 indoor Led Screen Rental Movable Led Display full color SMD1921 LED screen
product detail
1.IC:SMD2121 SMD1921
2.Lifespan:100000h
3.pixel pitch:2.604mm 3.91mm 4.81mm
4.LED Power:50W
product feature
1.This display screen uses high-quality luminous components as the core material of the display screen, ensuring the service life of the product.
2.High Refresh: the picture is clear and natural, showing no flicker, no delay, no mosaic phenomenon; changing the picture is faster; the color display is more symmetrical.
3.The die-cast aluminum box made of aluminum-magnesium-zinc alloy is not easy to deform, corrosion-resistant, fast in heat dissipation, long in service life, light and thin in design, and convenient for transportation and installation.
4.The design of this display screen is novel and generous, with low energy consumption, light weight and convenient loading and unloading.
5.The back cover of the box body is designed with a buckle, which is convenient to install, and the front and rear maintenance design is adopted, so as to maintain quickly, save worry, labor and time.
6.This display screen has various forms, which can be made into square, rectangular, arc, circular and other shapes.
P3.91 Outdoor Led Screen parameter
Application: | Outdoor, Advertising |
Color: | Full Color |
Panel Size: | 250mm*250mm |
Pixel Pitch: | 3.91mm |
Supplier Type: | Original manufacturer |
Media Available: | datasheet, Photo, EDA/CAD Models, Other |
Place of Origin: | Guangxi, China |
Model Number: | LIGHTALL- Outdoor P2.604 P3.97 P4.87 |
Brand Name: | TENBULL |
Pixels: | 3.91mm |
Specification: | Video Wall, LED Display, LED Screen |
Display Fuction: | Video |
Screen Dimension: | Customized Size |
Lifespan: | 100000h |
Input Voltage: | 100-240V |
Refresh Rate: | 3840Hz |
LED Configuration: | SMD1921 |
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
Model | P3.91 | |
LED MOQ | 1pc | |
LED IC | 1921/2020/2121 | |
LED Power | 50W | |
Input Voltage | AC85~265V | |
Frequency Range | 50Hz – 60Hz | |
Power Factor | >98 | |
Power Efficiency | >85% | |
Luminous Efficiency | 70~110LM/W | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>70 |
PW | Ra>75 | |
CW | Ra>75 | |
Lamp Efficiency | >85% | |
Lumens Output | WW | 4200lm |
PW | 4400lm | |
CW | 4600lm | |
Beam Angle | 120° | |
Working Temperature | -40℃ ~ +55℃ | |
Storage Temperature | -25℃ ~ +65℃(25℃best) | |
Life span | >100000hrs | |
Certification | CE, RoHS, FCC | |
Housing Color | Black | |
package | 67*36*29cm (4pcs/box) |

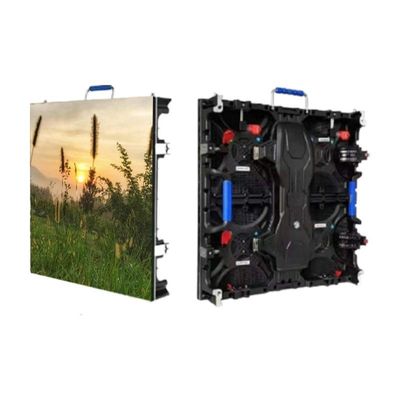

Product photo
