Product Details:
|
| Brand Name: | TENBULL | Pixels: | 4.81mm |
|---|---|---|---|
| Warranty: | 1.5 Year | Pixel Configuration: | 1R1G1B Full-color |
| Place Of Origin: | China | Module Size: | 250mm*250mm |
| Certification: | CE,RoHS,EMC,FCC | Model Number: | TENBULL P4.81 |
| Box Size: | 500mm*500mm | ||
| High Light: | CE LED Screen Floor Tiles,LED Screen Floor Tiles Waterproof,SMD 2121 Cabinet LED Screen |
||
TENBULL P4.81 P3.91 P2.064 LED display screen SMD 2121 cabinet size 500*1000mm
Quick detail
1.Pixels:4.81mm
2.Pixel density:43264dot/m2
3.LED type:SMD1921
4.Best watching distance:4m～50m
5.Thickness:85mm
Product detail
1.This display screen is applicable to performance display screen, exhibition, indoor media, advertising signs, hotels, stations, airports and other scenes.
2.The module adopts automatic glue filling machine to ensure that the module is evenly filled, smooth and waterproof.
3.The box of this LED display is customized from aluminum-magnesium-zinc alloy, which is anti-corrosion, waterproof and moisture-proof, anti-aging, and it can effectively extend the life of the product.
4.The modules are all coated with three-proof paint to protect the circuit board and related equipment from environmental influences, and have the characteristics of insulation, moisture-proof, leakage-proof, shock-proof, corrosion-proof, aging-proof, corona-proof, high-temperature resistance, etc.
5.The modules are all coated with three-proof paint to protect the circuit board and related equipment from environmental influences, and have the characteristics of insulation, moisture-proof, leakage-proof, shock-proof, corrosion-proof, aging-proof, corona-proof, high-temperature resistance, etc.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

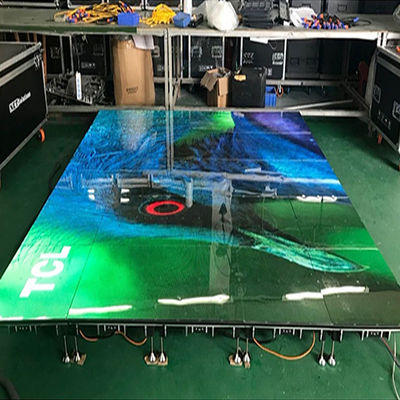

Product photo
FAQ
Q1.What is your MOQ?
A:Any quantity is acceptable for your order. And the price is calculated according to Specs/Size/Quantity of each of your order, it is negotiable for large quantity.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.How do you ship the goods and how long does it take to arrive?
A:We mostly accept FOB terms, but we can help you order and arrange a shipping agent. It usually takes 20-30 days on the sea and a few days for customs clearance.
